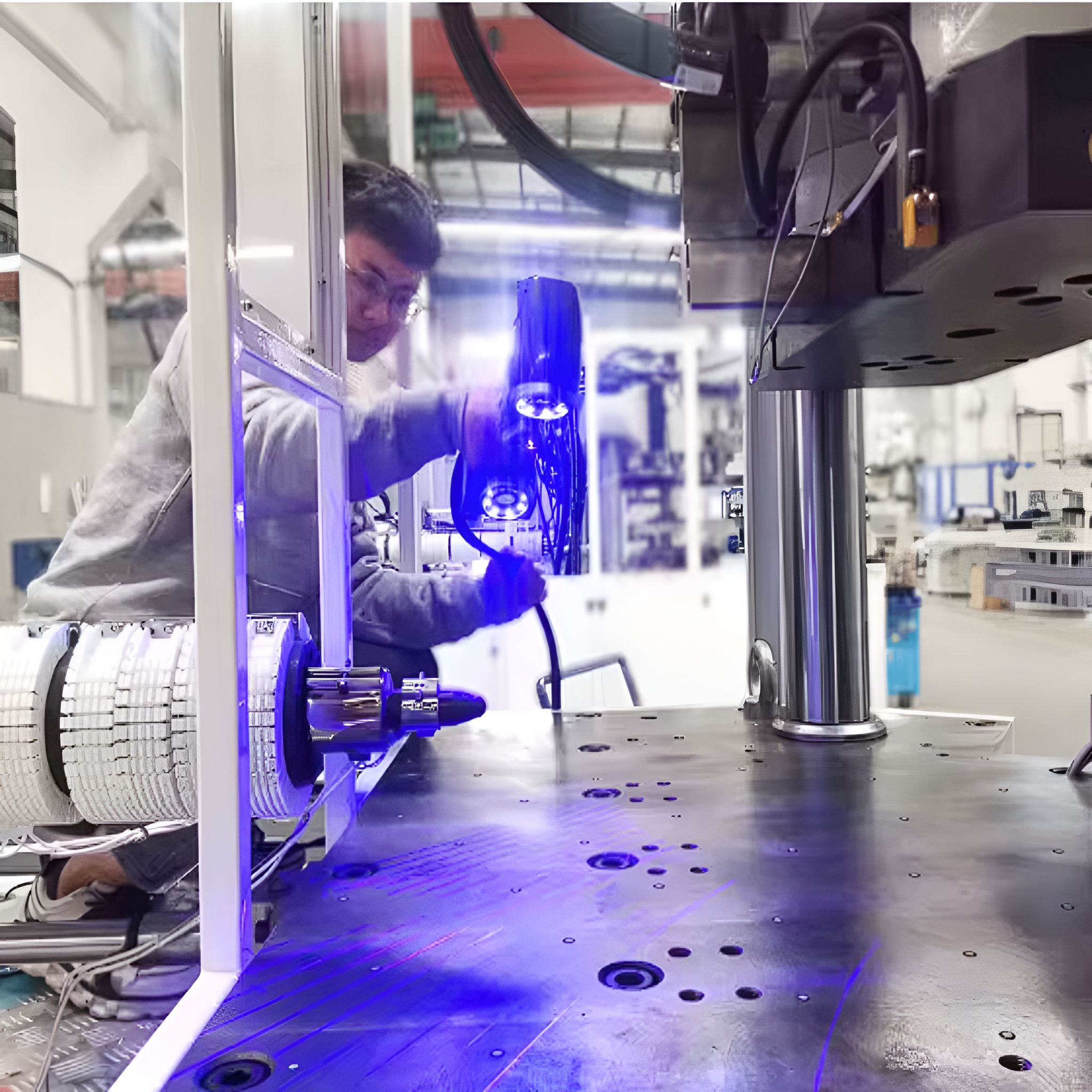

Aurelius VantaRay X2 Laser Scanner

The Aurelius VantaRay X2 Laser Scanner is designed for those who demand the best. This fully-equipped scanner is built with aerospace-grade alloys and premium optics, including dual coaxial laser modules, twin HDR cameras, real-time fusion software, and an advanced metrology engine with sub-millimeter accuracy. With enough speed to handle demanding capture needs, this scanner also features a sleek and highly functional dual-head design, perfect for the ultimate professional digitization experience.

Specifications

• Material: Magnesium alloy chassis with impact-resistant composite housing

• Dimensions: 210 mm (H) x 85 mm (W) x 120 mm (D)

• Features: Dual laser lines, HDR stereo cameras, real-time alignment, color capture

• Scan Speed: Up to 1,600,000 points per second

• Connectivity: USB-C (10 Gbps), Wi-Fi 6, and onboard 128 GB buffer

Features

• Dual-Laser Metrology Engine: Achieves up to 0.02 mm accuracy for precision reverse engineering

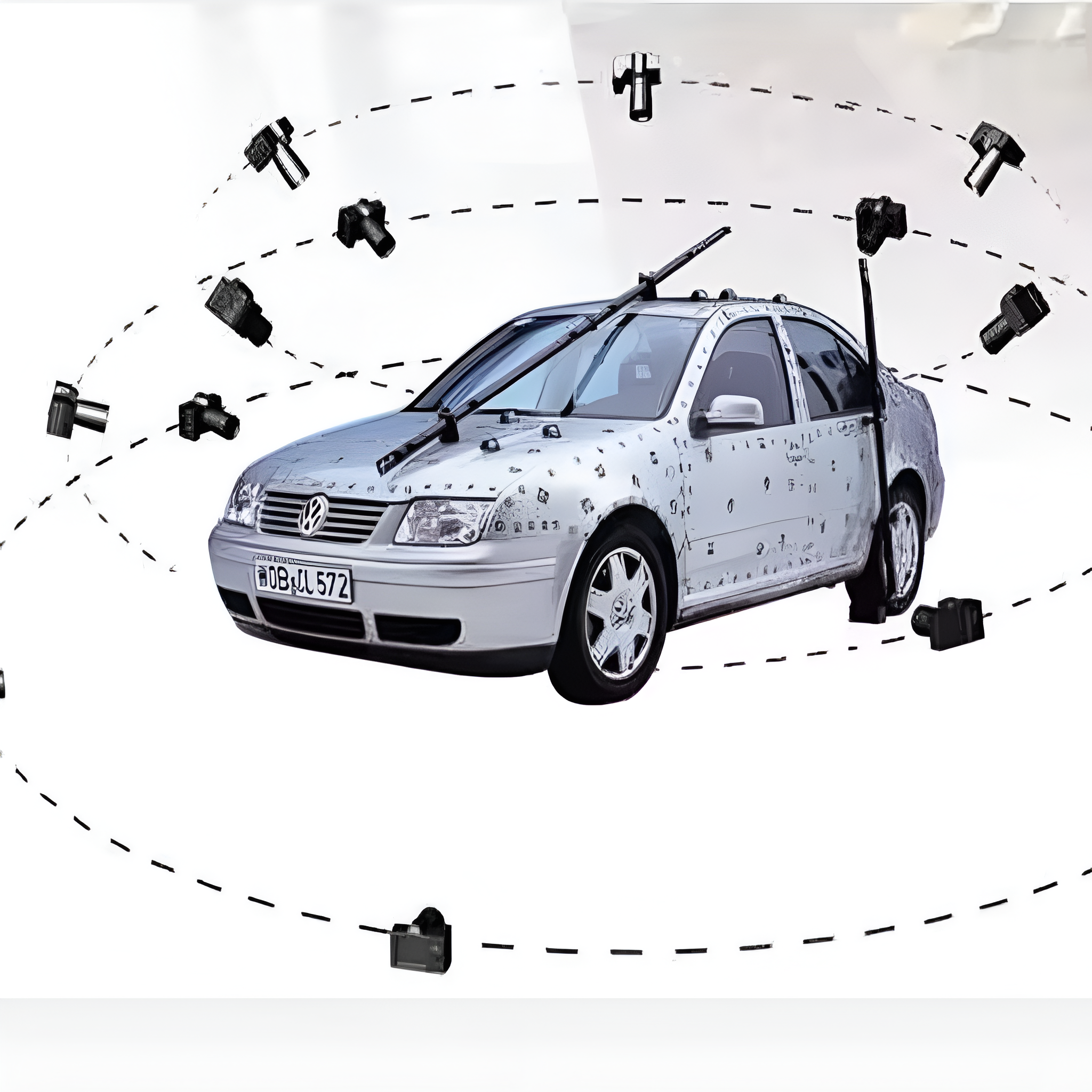

• Real-Time Fusion & Tracking: On-the-fly alignment with markers or feature-based tracking

• Multi-Surface Capability: Optimized for dark, shiny, and fine-edged parts

• Wide Capture Range: 200–600 mm working distance with adjustable FOV

• Pro-Grade Outputs: Exports point clouds and meshes (PLY, OBJ, STL, E57, LAS)

• Sleek Design: Balanced “I-frame” body with thermal management and soft-touch grip

Maintenance

• Daily: Wipe lenses with a microfiber cloth and verify calibration

• Weekly: Update firmware, back up projects, and inspect cables/ports

• Annually: Full metrology recalibration and comprehensive optical cleaning

Warranty

• Scanner & Optics: 3 years

• Electronics & Software: 3 years with priority support
