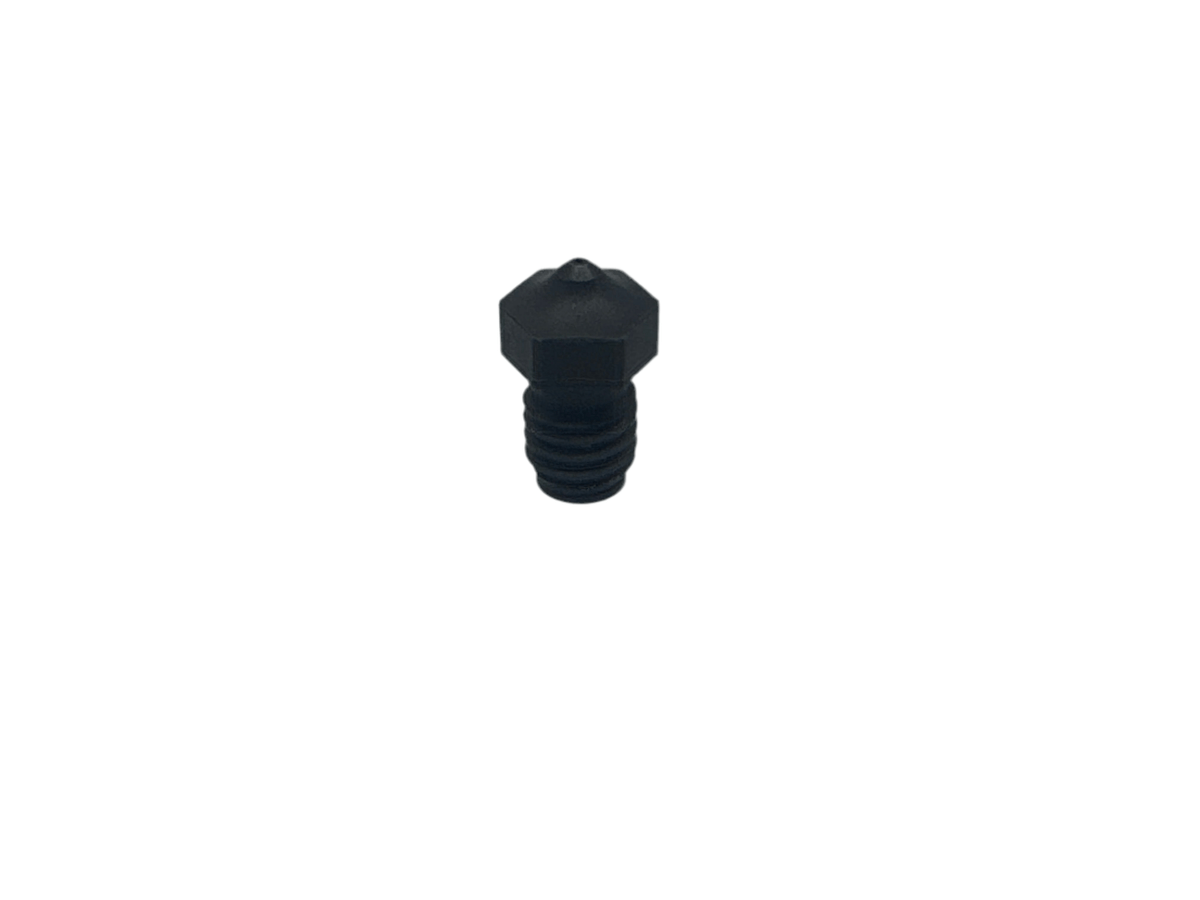

Phaetus Hardened Steel Hardened Nozzles for V6 Style Hot Ends Abrasives
Choose options
-
Performance
AnalysisHardness over HRC60 makes an minimum wear at the hole size after a long time printing with abrasive materials.
Temperature resistance up to 450℃, easily handling with special engineering plastics such as PEEK.
Special processing technology and post-treatment make the nozzle without burr at the edge of tip and without debris in the hole.
Inner hole roughness lower than Ra0.4; Higher smoothness and less adhesion.
Min. orifice diameter 0.1mm/±0.01mm in experimental level application, making sure high accuracy printing.
High quality imported die steel material ensures the stability of performance.
Applicable
FilamentWear-resistance, High temperature performance, suitable for 3D printing composites with abrasive additives such as Carbon Fiber, Steel, Wood, Boron Carbide, Tungsten and Phosphorescent pigment as well as conventional materials.
Product
Featuresφ0.1Min. Orifice Diameter
±0.01mmTolerance
≤Ra0.4μmInner Hole Roughness
≤0.02mmConcentricity
